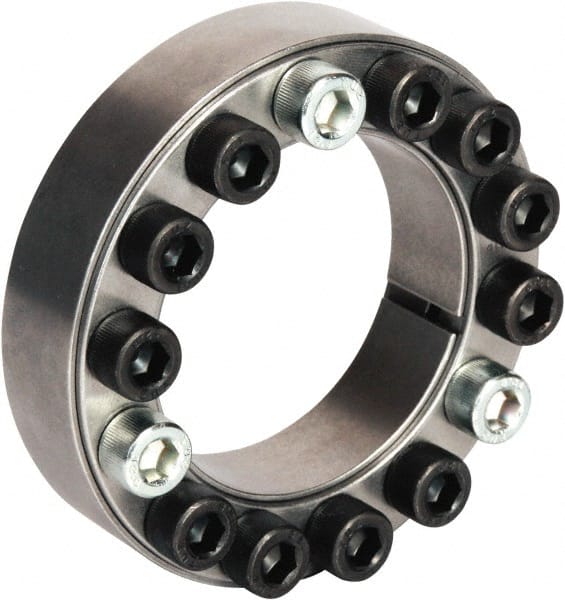

Climax Metal Products - M8 Thread, 2-9/16" Bore Diam, 3.737" OD, Shaft Locking Device - 16 Screws, 26,275 Lb Axial Load, 3.737" OAW, 0.787" Thrust Ring Width, 2,805 Ft/Lb Max Torque
Item #: 64642630
Brand: Climax Metal Products
Model #: C200E-256
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Inch) | 2-9/16 |
| Bore Diameter (Decimal Inch) | 2.5625 |
| Outside Diameter (Decimal Inch) | 3.7370 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.7370 |
| Axial Load Lbs (Pounds) | 26275 |
| Maximum Torque (Ft/Lb) | 2805 |
| Number of Screws | 16.000 |
| Contact Pressure on Hub (psi) | 23686.000 |
| Contact Pressure on Shaft (psi) | 34542.000 |
| Screw Seating Torque (In/Lb) | 312.000 |
