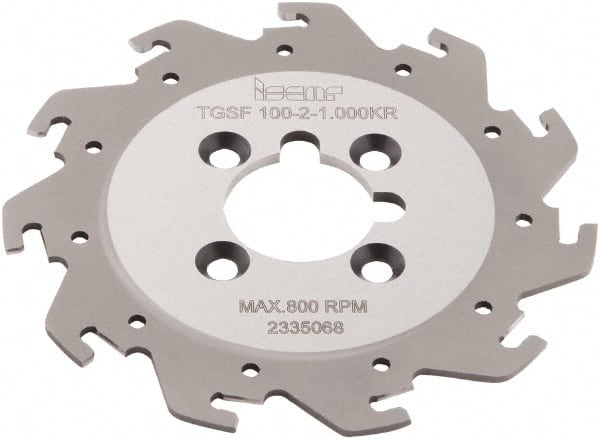

Iscar - Arbor Hole Connection, 0.079" Cutting Width, 1.02" Depth of Cut, 0.065" Cutter Diam, 1" Hole Diam, 11 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG N2 Insert
Item #: 64661754
Brand: Iscar
Model #: 2302608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (Decimal Inch) | 1.0200 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Cutter Diameter (Inch) | 0.0650 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 11 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG N2 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Hub Diameter (Decimal Inch) | 1.5750 |
| Radius | No |
| Complete Insert Compatibility1 | TAG N1.4C; TAG N1.4J; TAG N1.6C; TAG N1.6J; TAG N2.4C; TAG N2A; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2LF; TAG N2UT; TAG N3A; TAG N3CB; TAG N3LF; TAG N3UT; TAG N4A; TAG N4UT; TAG N5UT; TAG N6UT |
