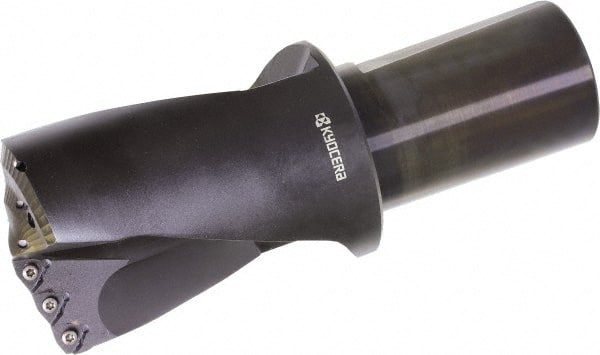

Kyocera - 3-1/2" Max Drill Depth, 3-3/8" Diam, Indexable Insert Drill - 6 Inserts, 2" Shank Diam, Whistle Notch Shank
Item #: 64673536
Brand: Kyocera
Model #: 8600977
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 3.3750 |
| Maximum Drill Depth (Decimal Inch) | 3.5000 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.3750 |
| Overall Length/Projection (Decimal Inch) | 8.3800 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 5.1300 |
| Shank Length (Decimal Inch) | 3.2500 |
| Collar Diameter (Decimal Inch) | 2.0000 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
