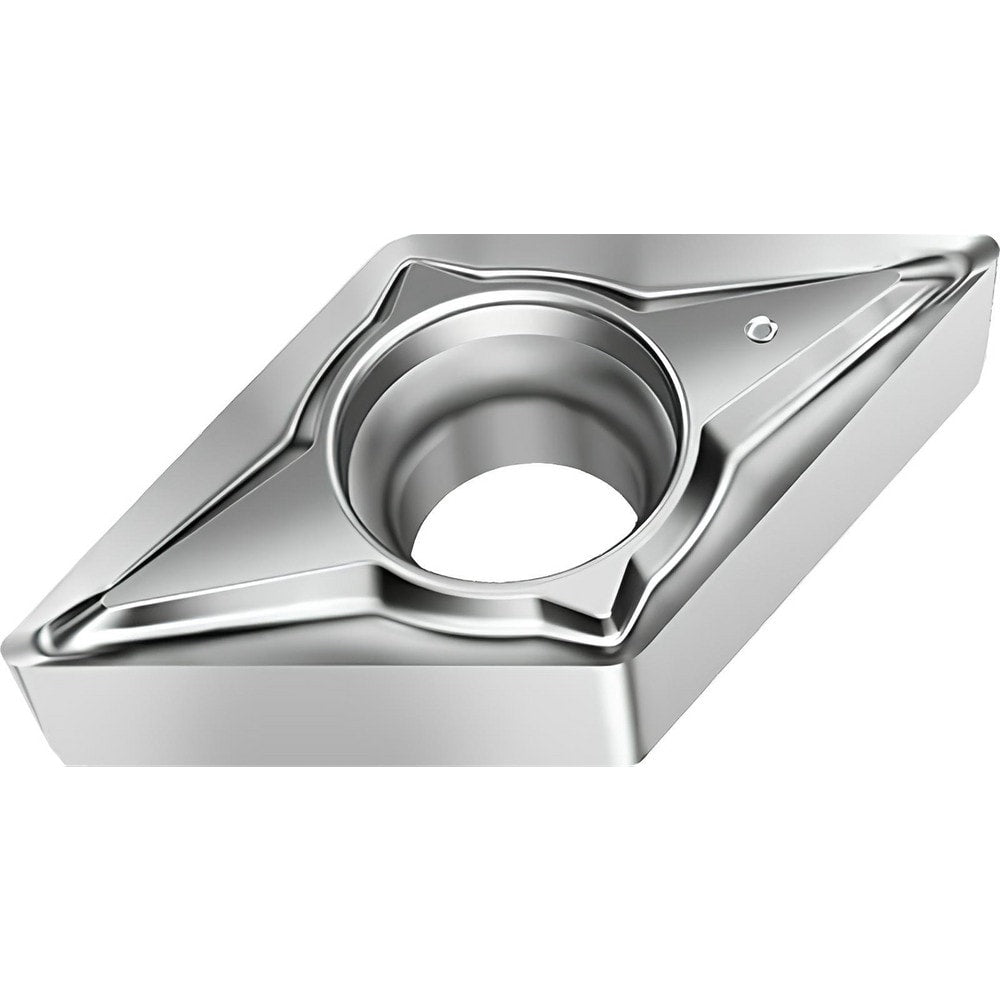

Turning Insert: DCGT32.51-FN2 WN10, Carbide

Item #: 16360539
Brand: Walter
Model #: 8132984

Product Specifications

ANSI Insert Code DCGT32.51

ISO Insert Code DCGT11T304

Relief Angle 7

Insert Style DCGT

Corner Radius (Inch) 1/64

Corner Radius (Decimal Inch) 0.0157

Included Angle 55

Manufacturer Grade WN10

Coating/Finish Bright/Uncoated

Wiper Edge No

Insert Hand Neutral

Insert Thickness (Inch) 5/32

Insert Thickness (Decimal Inch) 0.1563

Series DCGT-FN2

Inscribed Circle (Decimal Inch) 0.3750

Inscribed Circle (Inch) 3/8

Insert Material Carbide

Insert Shape D - Diamond (Rhombic) 55-Deg

Chip Breaker Operation Finishing

Side Clearance Positive

Number Of Cutting Edges 2

Insert Shape Code D

Hole Diameter (Decimal Inch) 0.1730

Maximum Depth of Cut (mm) 2.49

Maximum Depth of Cut (Decimal Inch) 0.0980

Insert Holding Method Screw

Width (Inch) 3/8

Clearance Code C

Tolerance Code G

Coating Process Uncoated

Length Range (Decimal Inch) 0.4000 - 0.5000

Rake Positive

Insert Length (Decimal Inch) 0.4580

Insert Length (mm) 11.63

Primary Workpiece Material Non-Ferrous Metal

Primary Workpiece Material Code N

Secondary Workpiece Material Superalloys & Titanium

Secondary Workpiece Material Code S

Iso Code DCGT11T304-FN2 WN10

Standards ISO; ANSI

Manufacturers Catalog Number 8132984

Material Grade S10; N10

Proprietary Coating Designation Uncoated

Lead Angle 55

Coating Classification Uncoated

Chip Breaker FN2

Rake Angle 18

Cutting Edge Style Honed

Industry Standard Number DCGT3(2.5)1-FN2 WN10

Width (Decimal Inch - 4 Decimals) 0.3750

Multi-Use Tool Yes

Full Radius No

Multi-Use Application Facing; Turning; Back Turning; Boring

ANSI Size Code 32.51

ISO Size Code 11T304

UNSPSC Code 23242105

Insert Size Code 32.51
