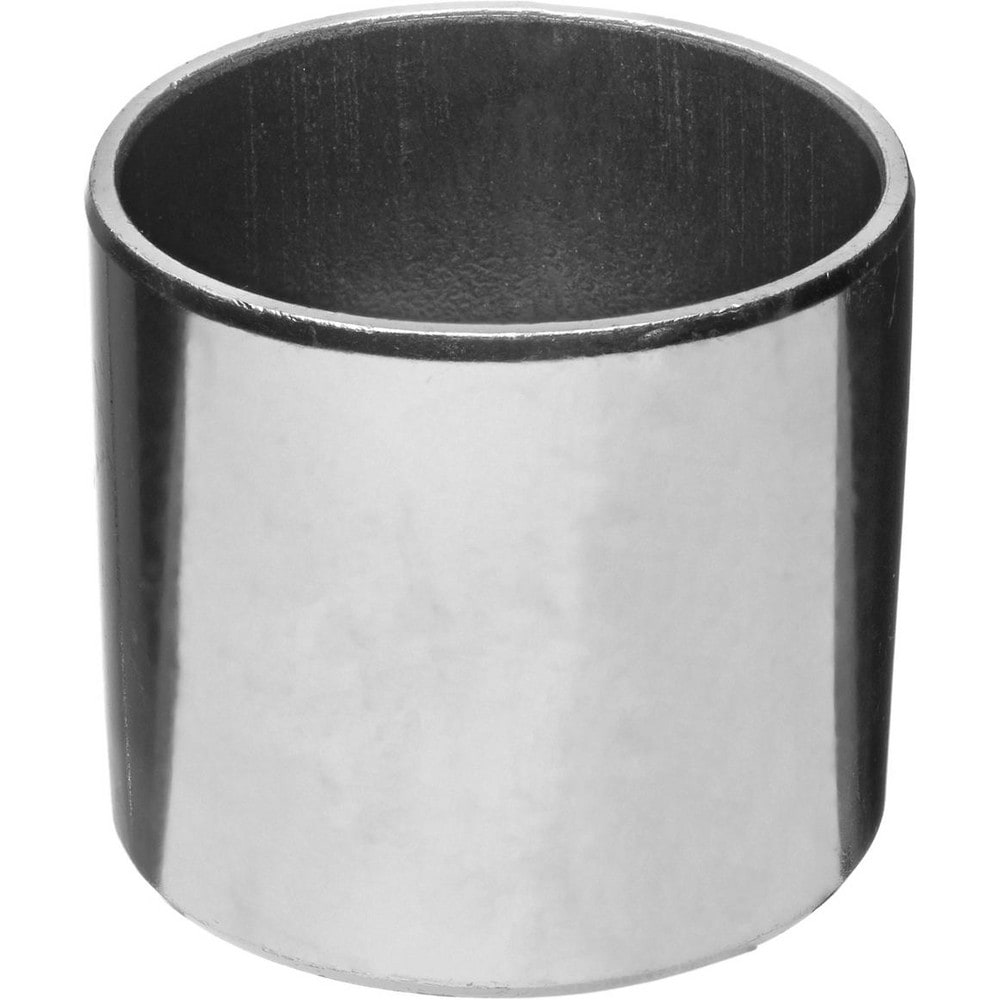

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 29/32; Outside Diameter (Decimal Inch - 4 Decimals): 0.9063; Inside Diameter (Inch): 25/32; Inside Diameter (Decimal Inch): 0.7813
Item #: 76824705
Brand: USA Industrials
Model #: ZUSAB-PB-87
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 29/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.9063 |
| Inside Diameter (Inch) | 25/32 |
| Inside Diameter (Decimal Inch) | 0.7813 |
| Material | Steel |
| Overall Length (Inch) | 25/32 |
| Overall Length (Decimal Inch) | 0.7813 |
| Static Load Capacity | 127442.10 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 23.0210 |
| Housing Bore Limits Mininum | 23.0000 |
| Inside Diameter (mm) | 20.0000 |
| Overall Length (mm) | 20 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
