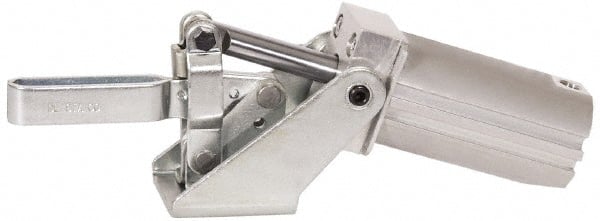

De-Sta-Co - 750 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPT Port, 69 Max psi, 97° Bar Opening, 40.89mm Height Under Bar
Item #: 64824485
Brand: De-Sta-Co
Model #: 846
Exact Tooling IR#: 04
Features and Benefits
Horizontal mounts indicate that the cylinder is mounted parallel to the clamping bar's closed position.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Horizontal |
| Holding Capacity - Inner (N) | 3340 |
| Holding Capacity - Inner (Lb.) | 750 |
| Height Under Bar (mm) | 40.89 |
| Height Under Bar (Decimal Inch) | 1.61 |
| Port Size | 1/8 NPT |
| Bar Opening (Degrees) | 97 |
| Length Distance Between Mount Holes (mm) | 25.40 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.0000 |
| Width Distance Between Mount Holes (mm) | 38.10 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.5000 |
| Clamping Force - Inner (N) | 3520 |
| Clamping Force - Inner (Lb.) | 786 |
| Bar Extension (Decimal Inch) | 2.1900 |
| Bar Extension (mm) | 55.63 |
| Overall Closed Length (mm) | 262.30 |
| Overall Closed Length (Decimal Inch) | 10.33 |
| Overall Open Height (Decimal Inch) | 5.54 |
| Overall Open Height (mm) | 140.80 |
| Overall Closed Height (mm) | 83.90 |
| Overall Closed Height (Decimal Inch) | 3.30 |
| Outer Load Capacity (N) | 1800 |
| Outer Clamping Force (N) | 1800 |
| Outer Clamping Force (Lb.) | 405 |
| Maximum Air Pressure (psig) | 69.00 |
| Maximum Air Pressure (bar) | 4.76 |
| Mounting Hole Size (mm) | 7.62 |
| Mounting Hole Size (Decimal Inch) | 0.3000 |
| Bar Style | U-Bar |
| Bar End Type | Open |
| Maximum Mechanical Advantage | 5.6:3.5 |
| Spindle Thread Size | 3/8; M10 |
| Maximum Operating Temperature (C) | 90.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Includes | Spindle |
