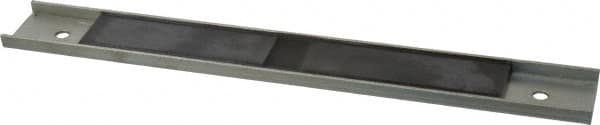

Eclipse - 15 Max Pull Force Lb, 12" Long x 1-1/2" Wide x 11/32" Thick, Rectangular Channel, Ceramic Fixture Magnet - 212°F Max Operating Temp, 0.01" Mounting Hole Diam, Stainless Steel Housing
Item #: 64826167
Brand: Eclipse
Model #: E664/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Fixture Style | Rectangular Channel |
| Length (Inch) | 12 |
| Width (Inch) | 1-1/2 |
| Width (Decimal Inch) | 1.5000 |
| Thickness (Decimal Inch) | 0.3438 |
| Thickness (Inch) | 11/32 |
| Average Pull Force (Lb.) | 8.00 |
| Maximum Pull Force (Lb.) | 15.00 |
| Housing Material | Stainless Steel |
| Mounting Hole Diameter (mm) | 1/4 |
| Mounting Hole Diameter (Decimal Inch) | 0.0100 |
| Maximum Operating Temperature (F) | 212.00 |
