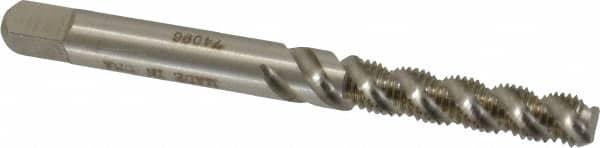

Heli-Coil - #8-36 UNF, 3 Flute, Bottoming Chamfer, Bright Finish, High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 2-3/8" OAL, 0.22" Shank Diam, 15/16" Thread Length, 3B Class of Fit
Item #: 64832546
Brand: Heli-Coil
Model #: 5906-2
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-36 |
| Class of Fit | 3B |
| Thread Limit | H1 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-3/8 |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (Inch) | 15/16 |
| Shank Diameter (Decimal Inch) | 0.2200 |
