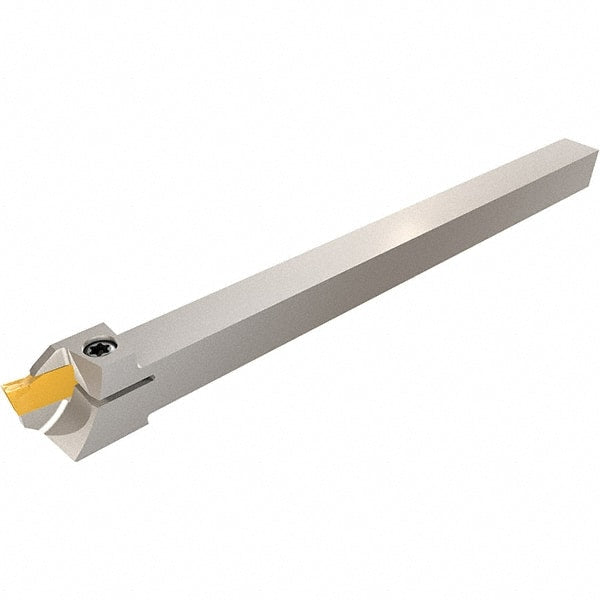

Iscar - PHS, External, Left Hand, 2.4 to 3.18mm Groove Width, Indexable Grooving Tool Holder - GDMW 2.4 Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 150mm OAL
Item #: 64845084
Brand: Iscar
Model #: 2800729
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (mm) | 2.40 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | PHS |
| Insert Compatibility | GDMW 2.4 |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 11.10 |
| Head Length (mm) | 20.00 |
| Shank Length (mm) | 130.00 |
| Complete Insert Compatibility | GDMW 2.4 |
