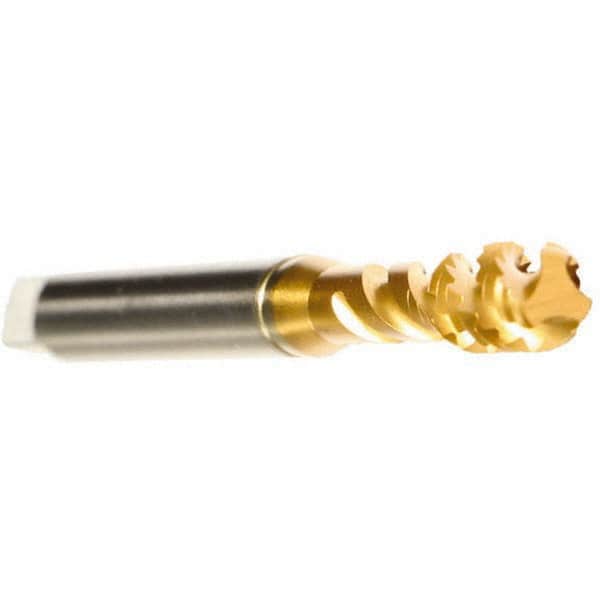

Emuge - 3/8-16 UNC 3 Flute 3B Bottoming Spiral Flute Tap - Cobalt, TiN Finish, 2-15/16" OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 64876584
Brand: Emuge
Model #: AU513710.5011
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-16 |
| Chamfer | Bottoming |
| Class of Fit | 3B |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.9375 |
| Overall Length (Inch) | 2-15/16 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.6300 |
| Flute Type | Fast Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 1.3780 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Length (Decimal Inch) | 1.5620 |
| Material Application | Aluminum Alloys; Copper; Copper Alloys; Stainless Steel; Steel |
