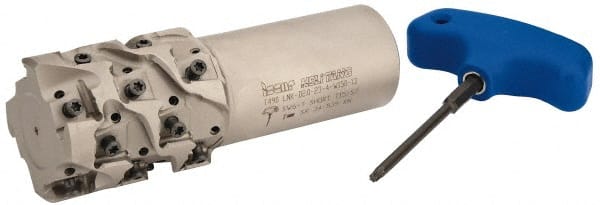

Iscar - 2" Cut Diam, 2.32" Max Depth of Cut, 1-1/2" Shank Diam, 5-1/4" OAL, Indexable Square Shoulder End Mill - T490 LN.T 1306 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helitang
Item #: 64886625
Brand: Iscar
Model #: 3105077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 5.2500 |
| Lead Angle | 90 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 2.3200 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T490 LNK-13 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 2.5600 |
| Weldon Flat | No |
| Insert Compatibility | T490 LN.T 1306 |
| Shank Length (Decimal Inch) | 2.6900 |
