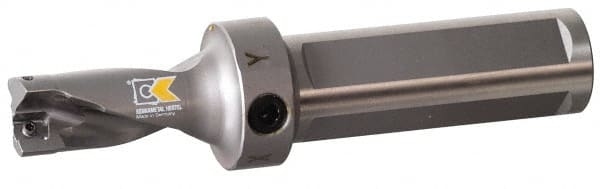

Kennametal - 3.88" Max Drill Depth, 4xD, 0.9689" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 64919129
Brand: Kennametal
Model #: 3022354
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (Decimal Inch) | 0.9689 |
| Maximum Drill Depth (Decimal Inch) | 3.8800 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 10.76x7.38x3.79 |
| Insert Size (Decimal Inch) | 0.4236x0.2906x0.1492 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.0090 |
| Maximum Drill Diameter (mm) | 25.63 |
| Overall Length/Projection (mm) | 202.43 |
| Overall Length/Projection (Decimal Inch) | 7.9697 |
| Insert Compatibility | DFR 040304 |
| Body Length (Decimal Inch) | 4.9700 |
| Body Length (mm) | 126.24 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
