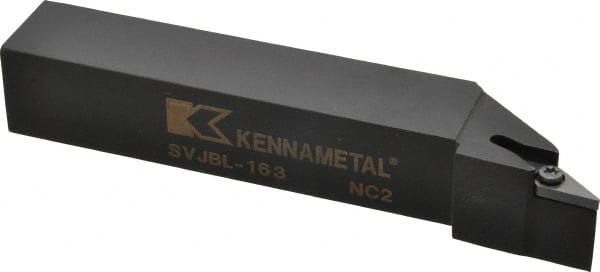

Kennametal - SVJB, Left Hand Cut, 3° Lead Angle, 1" Shank Height x 1" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, VB..33. Insert Compatibility, Series Screw-On
Item #: 64922313
Brand: Kennametal
Model #: 1094542
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SVJB |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-On |
| Lead Angle | 3 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VB..33. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 31.75 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (mm) | 34.93 |
| Head Length (Decimal Inch) | 1.3800 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
