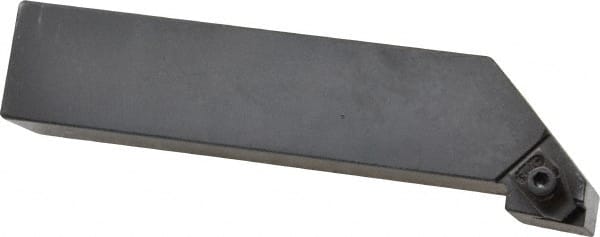

Kennametal - External Thread, Left Hand Cut, 25.4mm Shank Width x 25.4mm Shank Height Indexable Threading Toolholder - 127mm OAL, N.2L Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 64923949
Brand: Kennametal
Model #: 1097255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Insert Compatibility | N.2L |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.3500 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
