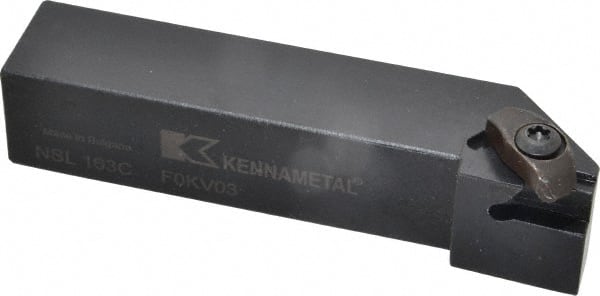

Kennametal - External Thread, Left Hand Cut, 25.4mm Shank Width x 25.4mm Shank Height Indexable Threading Toolholder - 127mm OAL, N.3L Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 64923964
Brand: Kennametal
Model #: 1097257
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Insert Compatibility | N.3L |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 5.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
