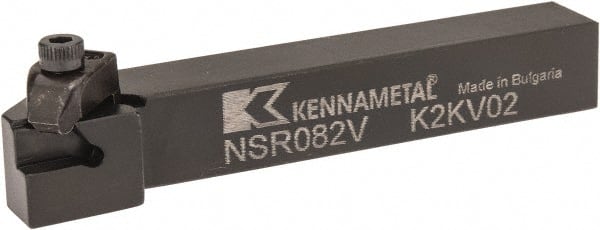

Kennametal - External Thread, Right Hand Cut, 12.7mm Shank Width x 12.7mm Shank Height Indexable Threading Toolholder - 88.9mm OAL, N.2R Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 64924145
Brand: Kennametal
Model #: 1097608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (mm) | 88.90 |
| Insert Compatibility | N.2R |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (Decimal Inch) | 0.3500 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
