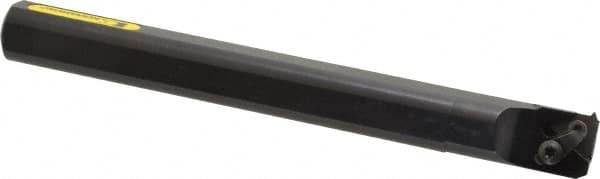

Kennametal - Internal Thread, Right Hand Cut, 19.05mm Shank Width x 3/4" Shank Height Indexable Threading Toolholder - 177.8mm OAL, LT 16NR Insert Compatibility, S12 Toolholder, Series LT Threading
Item #: 64926272
Brand: Kennametal
Model #: 1288937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 177.80 |
| Insert Compatibility | LT 16NR |
| Series | LT Threading |
| Toolholder Style | S12 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5100 |
| Center to Cutting Edge (Decimal Inch) | 0.5100 |
| Minimum Bore Diameter (Decimal Inch) | 0.9000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
