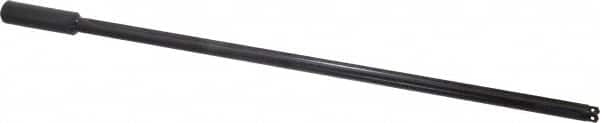

Allied Machine and Engineering - Series 0, 33/64 to 11/16" Diam, 3/4" Diam Straight Shank, Straight Flute Spade Drill - 15-1/4" Max Depth, 16-11/64" Body Length, 18-7/16" OAL, Extended Length, Through Coolant
Item #: 65055881
Brand: Allied Machine and Engineering
Model #: 29000S-075L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (Inch) | 33/64 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 18-7/16 |
| Maximum Drill Depth (Inch) | 15-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 16-1/16 |
| Body Length (Inch) | 16-11/64 |
| Shank Length (Inch) | 2-3/8 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
