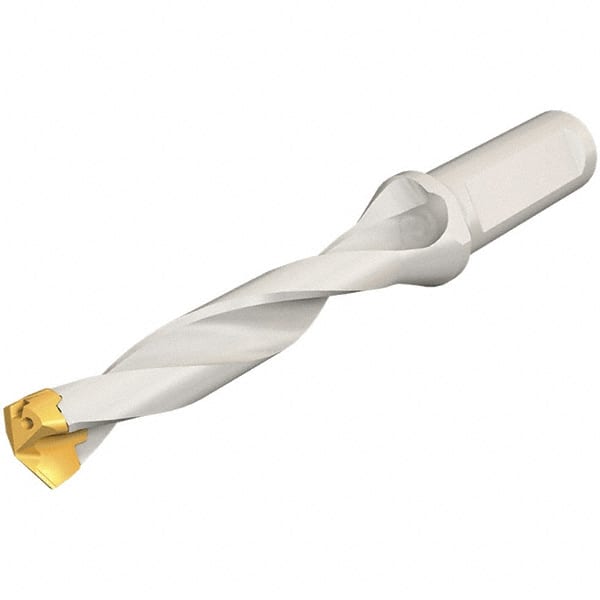

Iscar - 14 to 14.9mm Diam, 5xD, 70mm Max Depth, 16mm Shank Diam, 139.4mm OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, 14 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 65215758
Brand: Iscar
Model #: 3200921
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | IDK; IDM; IDN; IDP |
| Insert Seat Size | 14 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 91.40 |
| Overall Length (mm) | 139.40 |
| Shank Length (mm) | 48.00 |
