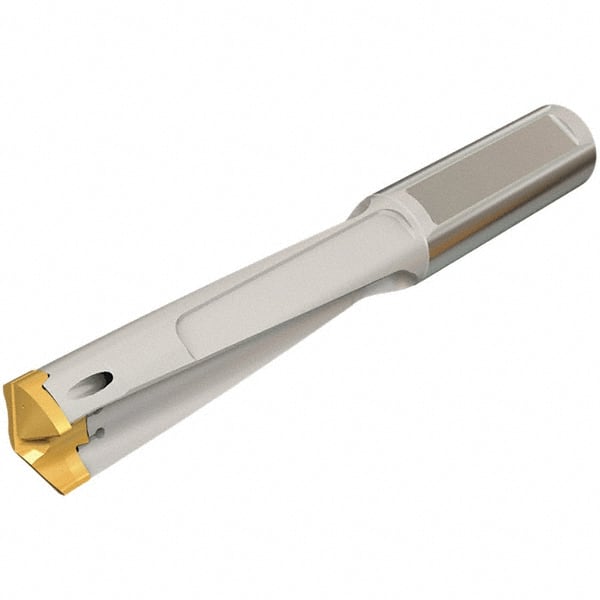

Iscar - 10.5 to 10.9mm Diam, 3.5xD, 34mm Max Depth, 11mm Shank Diam, 87.8mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 10 Seat Size, DCM Toolholder, Series UniChamDrill
Item #: 65224610
Brand: Iscar
Model #: 3200974
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4290 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.3386 |
| Maximum Drill Depth (mm) | 34.00 |
| Shank Diameter (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.4330 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 10 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 44.80 |
| Body Length (Decimal Inch) | 1.7638 |
| Overall Length (mm) | 87.80 |
| Overall Length (Decimal Inch) | 3.4567 |
| Shank Length (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.6929 |
