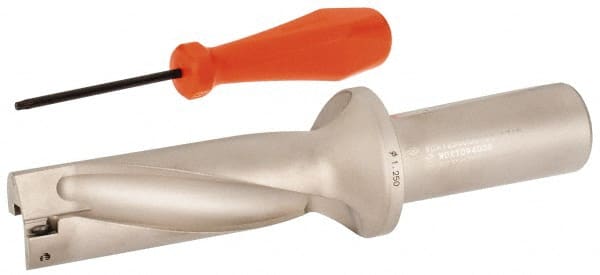

Sumitomo - 3.907" Max Drill Depth, 3xD, 1-1/4" Diam, Indexable Insert Drill - 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 65327587
Brand: Sumitomo
Model #: 2A00W33
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 3.9070 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.3780x0.1575 |
| Overall Length/Projection (Decimal Inch) | 7.7340 |
| Insert Compatibility | WDXT 094008 |
| Body Length (Decimal Inch) | 4.7340 |
| Shank Length (Decimal Inch) | 3.0000 |
