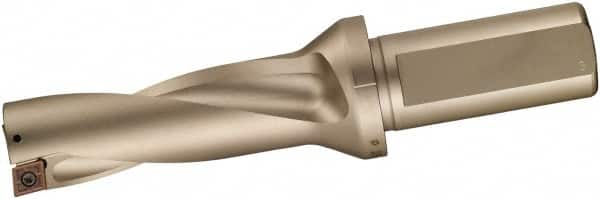

Sumitomo - 53mm Max Drill Depth, 2xD, 25mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 65327777
Brand: Sumitomo
Model #: 2A00114
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 25.00 |
| Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (mm) | 53.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0866 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 127.00 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Insert Compatibility | WDXT 073506 |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Body Length (Decimal Inch) | 2.7953 |
| Body Length (mm) | 71.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 37.00 |
| Collar Diameter (Decimal Inch) | 1.4567 |
| Series | SumiDrill |
