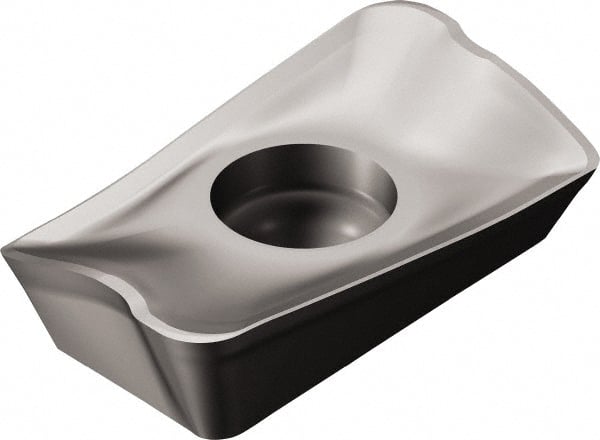

Sandvik Coromant - R39011T302 KM Grade H13A Carbide Milling Insert - Uncoated, 3.59mm Thick, 6.8mm Inscribed Circle, 0.2mm Corner Radius
Item #: 65504805
Brand: Sandvik Coromant
Model #: 5745532
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 11T302 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Width (mm) | 6.80 |
| Width (Decimal Inch) | 0.2677 |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 6.80 |
| Thickness (mm) | 3.59 |
| Thickness (Decimal Inch) | 0.1413 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R390-11 T3 02E-KM H13A |
