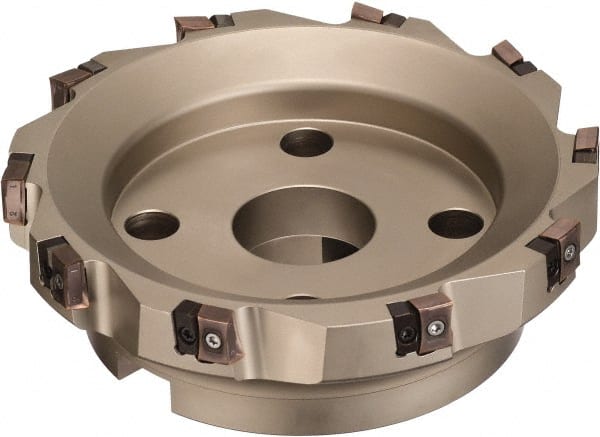

Sumitomo - 2" Cut Diam, 5mm Max Depth, 3/4" Arbor Hole, 6 Inserts, RDET10 Insert Style, Indexable Copy Face Mill - RSXF Cutter Style, 1-3/4 High, Series RSX
Item #: 65535916
Brand: Sumitomo
Model #: 2200WD0
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | RSX |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RDET10 |
| Cutter Style | RSXF |
