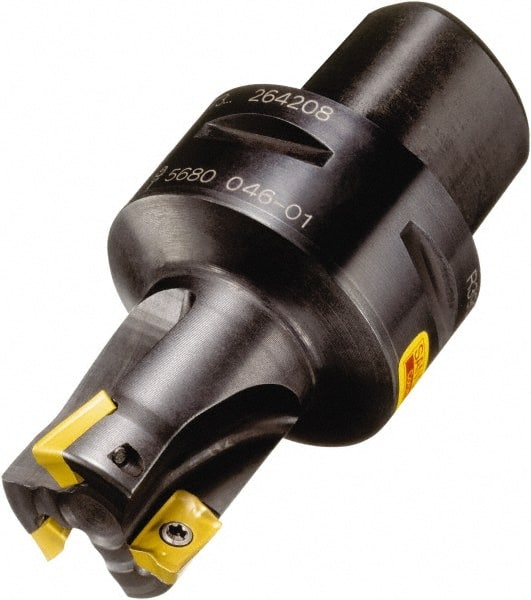

Sandvik Coromant - 3 Inserts, 40mm Cut Diam, 50mm Arbor Diam, 15.4mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 110mm High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 65557134
Brand: Sandvik Coromant
Model #: 5745418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 110.00 |
| Overall Height (Decimal Inch) | 4.3307 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Cx |
| Maximum RPM | 9200 |
| ISO Number | R390-040C5-18M080 |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
