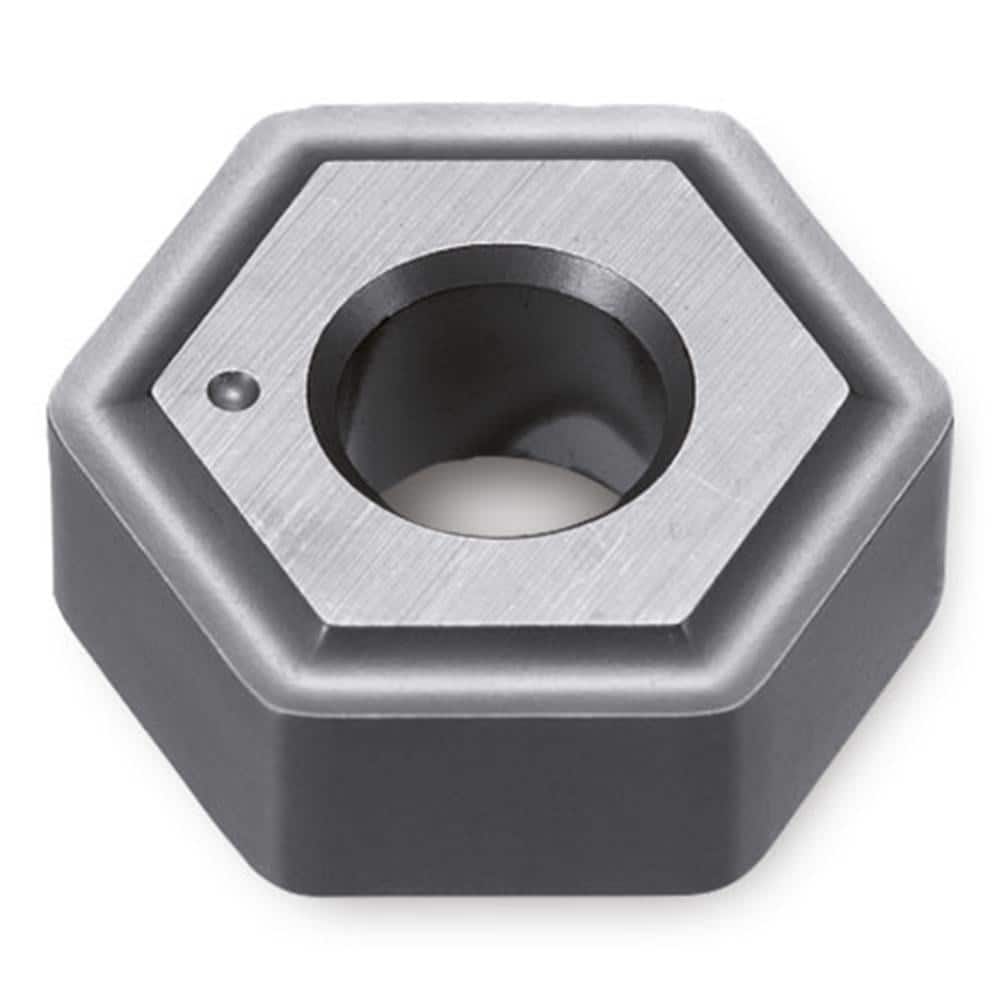

HNMG100612SU TT5080 Carbide Turning Insert Hexagon
Item #: 65564478
Brand: Ingersoll Cutting Tools
Model #: 5523140
Product Specifications
| Insert Style | HNMG |
| Insert Shape Code | H |
| Insert Size Code | 643 |
| Insert Shape | Hexagon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5080 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 120.0 |
| Relief Angle | 0 |
| Series | HNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3610 |
| Number Of Cutting Edges | 12 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | HNMG643SUTT5080 |
| Iso Code | HNMG100612SU TT5080 |
| Chip Breaker | SU |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | AlTiN; TiN |
