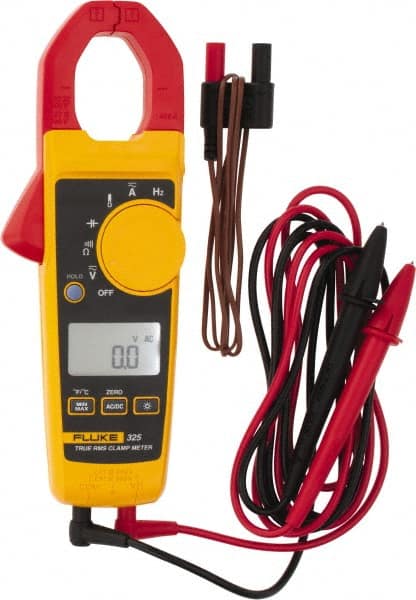

Fluke - 325, CAT IV, CAT III, Digital True RMS Clamp Meter with 1.18" Clamp On Jaws - 600 VAC/VDC, 400 AC/DC Amps, Measures Voltage, Capacitance, Continuity, Frequency, Resistance, Temperature
Item #: 65577975
Brand: Fluke
Model #: FLUKE-325
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Capacitance; Continuity; Frequency; Resistance; Temperature |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.1800 |
| CAT Rating | CAT IV; CAT III |
| Maximum DC Voltage | 600 |
| Maximum AC Voltage | 600 |
| Maximum DC Current (A) | 400 |
| Maximum AC Current (A) | 400 |
| Maximum Resistance (Ohms) | 40000 |
| Temp Measurement Range (C) | -10 - 400 |
| Temp Measurement Range (F) | 14 - 752 |
| Temp Measurement Range w/Included Probe (F) | 14 - 500 |
| Temp Measurement Range w/Included Probe (C) | -10 - 260 |
| Maximum Capacitance (Microfarads) | 1000 |
| Maxium Capacitance (mF) | 1.000 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Includes | Test Leads; Case; Manual |
| Frequency | 500Hz |
| Counts | 6000 |
| Battery Type | (2) AAA |
| Standards Met | IEC61010; EN61326 |
| PSC Code | 6625 |
