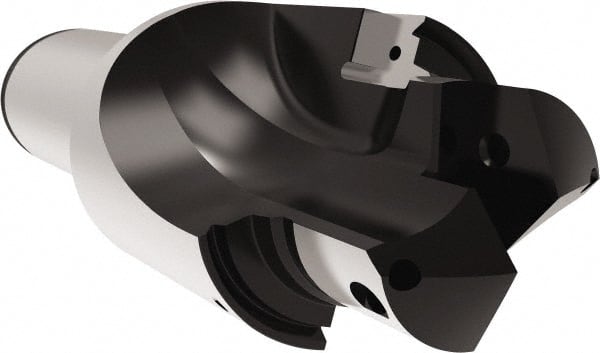

Allied Machine and Engineering - M33x2.00, 1.22" Pilot Diam, 1.929" Spotface Diam, 0.874" Pilot Length, Tube Dash 16, Indexable Porting Tool
Item #: 65611279
Brand: Allied Machine and Engineering
Model #: I6149-16R2-32FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M33x2.00 |
| Tube Dash Number | 16 |
| Pilot Diameter (Decimal Inch) | 1.2200 |
| Spotface Diameter (Decimal Inch) | 1.9290 |
| Pilot Length (Decimal Inch) | 0.8740 |
| Shank Diameter (Inch) | 1.2600 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-16-C3H; I6149-16-C5A; I6149-16R-C3H; I6149-16R-C5A |
| Porting Diameter (Decimal Inch) | 1.3950 |
| Overall Length (Decimal Inch) | 4.9200 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1300 |
| Head Length (Decimal Inch) | 2.6400 |
| Shank Length (Decimal Inch) | 2.2800 |
| Spotface to Shoulder Length (Decimal Inch) | 1.4990 |
| Series | AccuPort 432 |
