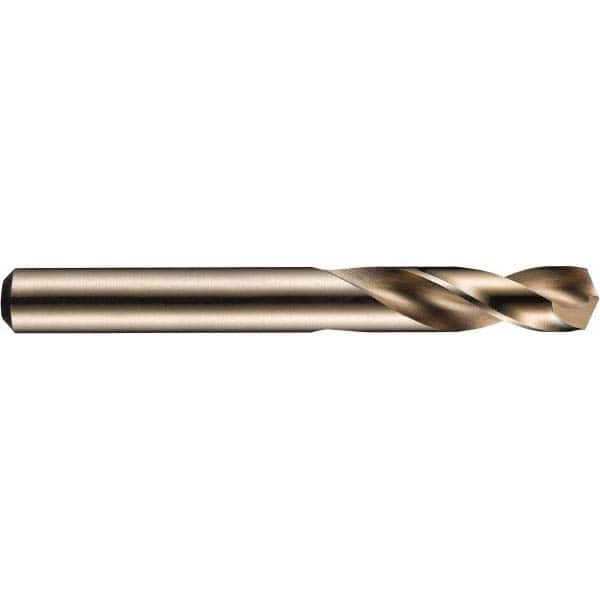

Screw Machine Length Drill Bit: 0.2559″ Dia, 135 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A117
Item #: 65625824
Brand: DORMER
Model #: 5968115
Product Specifications
| Drill Bit Size (mm) | 6.50 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2559 |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7580 |
| Shank Diameter (mm) | 6.50 |
| Series | A117 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 2.5xD |
| Drill Bit Diameter Tolerance | 0.000 to -0.022 mm |
| Flute Length (Decimal Inch) | 1.2214 |
| Flute Length (mm) | 31.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M2 |
