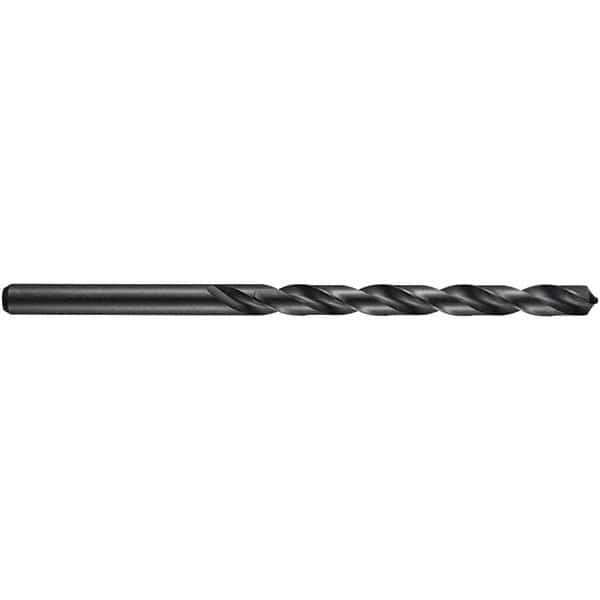

DORMER - 9.2mm 118° Spiral Flute High Speed Steel Taper Length Drill Bit
Item #: 65627184
Brand: DORMER
Model #: 0011997
Product Specifications
| Drill Bit Size (mm) | 9.20 |
| Drill Bit Size (Decimal Inch) | 0.3622 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Split Point |
| Flute Length (Decimal Inch) | 4.5310 |
| Flute Length (mm) | 115.00 |
| Overall Length (mm) | 175.00 |
| Overall Length (Decimal Inch) | 6.8950 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 9.20 |
| Shank Diameter (Decimal Inch) | 0.3622 |
| Flute Length x Diameter Ratio | 6xD |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.022 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 340 |
| Material Grade | M2 |
| Series/List | A110 |
