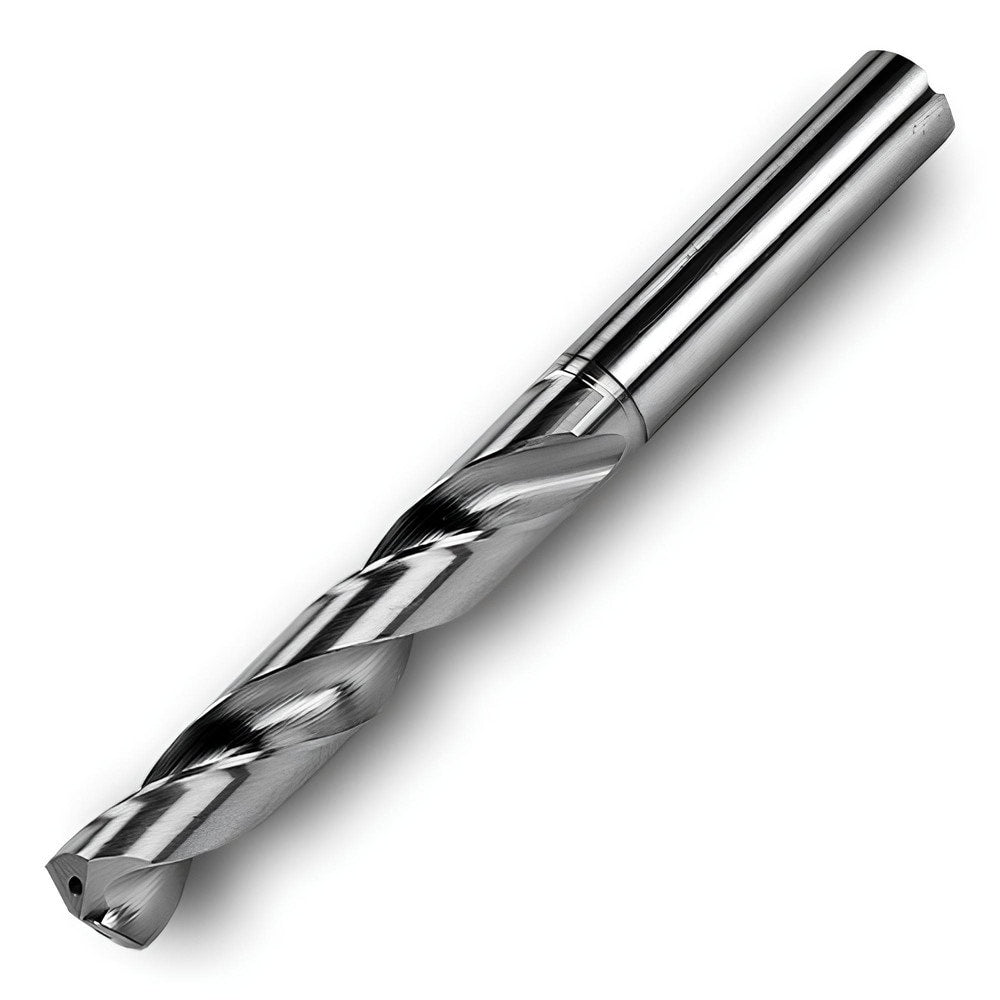

Brand: Ingersoll Cutting Tools / Part #: 3212896
Item #: 69645885
Brand: Ingersoll Cutting Tools
Model #: 3212896
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3110 |
| Drill Bit Size (mm) | 7.90 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Point Type | Self Centering |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.0000 |
| Overall Length (Decimal Inch) | 3.1102 |
| Overall Length (Inch) | 3-7/64 |
| Shank Diameter (mm) | 8.0000 |
| Series | DR |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 38.000 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (Decimal Inch) | 1.6142 |
| Flute Length (mm) | 41.00 |
| Drill Bit Grade | High Performance |
| Material Grade | IN2005 |
