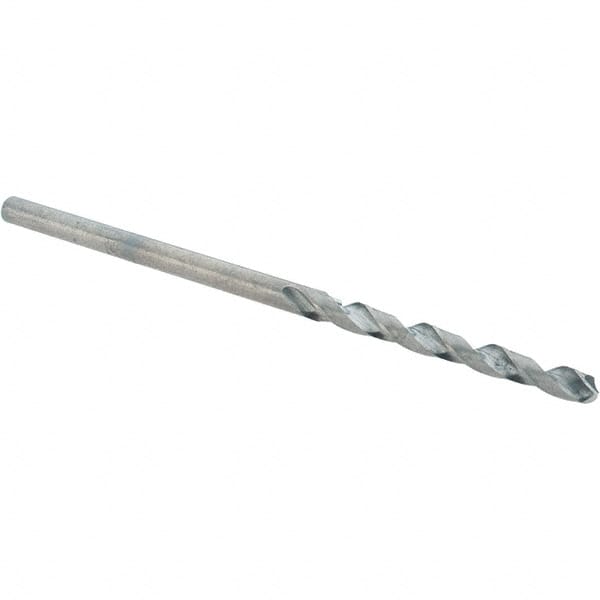

Guhring - 5/64" 118° Solid Carbide Jobber Drill
Item #: 60675451
Brand: Guhring
Model #: 9007320019800
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/64 |
| Drill Bit Size (Decimal Inch) | 0.0781 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 24.00 |
| Flute Length (Decimal Inch) | 0.9449 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Faceted |
| Shank Diameter (mm) | 1.98 |
| Shank Diameter (Inch) | 5/64 |
| Shank Diameter (Decimal Inch) | 0.0781 |
| Maximum Drilling Depth (Decimal Inch) | 0.9449 |
| Maximum Drilling Depth (mm) | 24.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 25.00 |
| Shank Length (Decimal Inch) | 0.9843 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.010 |
| Number of Flutes | 2 |
| Drill Bit Grade | General Purpose |
| Material Grade | DK120 |
| Series/List | 732 |
