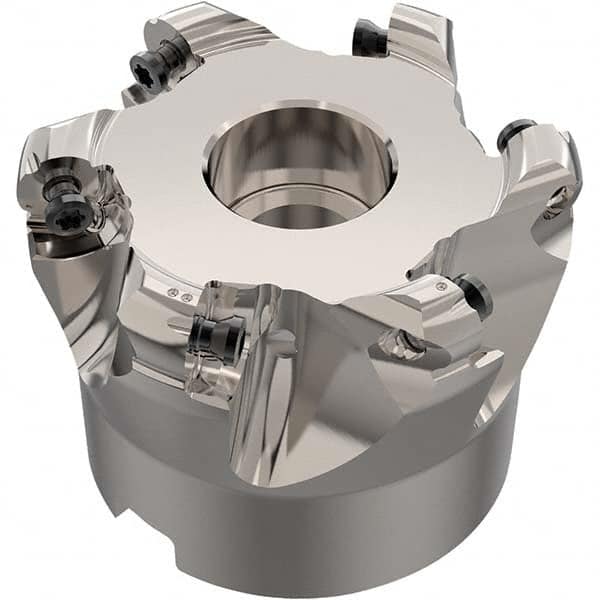

Seco - Indexable Copy Face Mills Cutting Diameter (mm): 40.79 Cutting Diameter (Decimal Inch): 1.6059
Item #: 94872850
Brand: Seco
Model #: 03278814
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 40.79 ; Cutting Diameter (Decimal Inch): 1.6059 ; Maximum Depth of Cut (mm): 5.00 ; Arbor Hole Diameter (Inch): 3/4 ; Overall Height (Inch): 1-1/2 ; Series: R220.29
| Cutting Diameter (mm) | 40.79 |
| Cutting Diameter (Decimal Inch) | 1.6059 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Overall Height (Inch) | 1-1/2 |
| Series | R220.29 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RP..10.. |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 12500 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 41.00 |
| Keyway Width (mm) | 8.1500 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.0000 |
