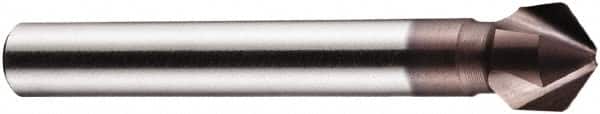

DORMER - 5mm Shank Diam, 3 Flute 100° High Speed Steel Countersink - TiAlN Finish, 44mm OAL, Single End, Straight Shank, Right Hand Cut
Item #: 65671141
Brand: DORMER
Model #: 0372609
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Number of Flutes | 3 |
| Included Angle | 100 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiAlN |
| Minimum Cutting Diameter (mm) | 1.50 |
| Shank Diameter (mm) | 5.00 |
| Shank Diameter (Decimal Inch) | 0.1970 |
| Overall Length (mm) | 44 |
| Overall Length (Decimal Inch) | 1.7336 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Magnesium; Nickel; Nickel Alloy; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloy |
