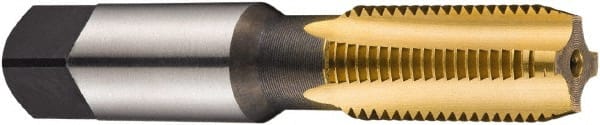

DORMER - 1/2-14 NPSF Thread, 4 Flute Standard Pipe Tap - 100mm OAL, 35mm Thread Length, TiN Finish, High Speed Steel
Item #: 65685661
Brand: DORMER
Model #: 0161555
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-14 |
| Thread Standard | NPSF |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.9400 |
| Overall Length (mm) | 100.00 |
| Thread Length (Decimal Inch) | 1.3790 |
| Thread Length (mm) | 35 |
| Square Size (Decimal Inch) | 0.5161 |
| Square Size (mm) | 13 |
| Series/List | E720 |
| Chamfer | 2 to 3 |
