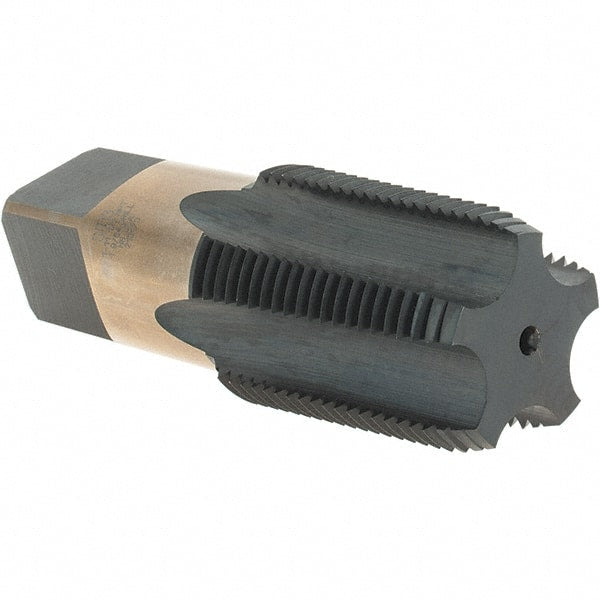

Union Butterfield - 1 - 11-1/2 NPT Thread, 5 Flute Standard Pipe Tap - 3-3/4" OAL, 1-3/4" Thread Length, Oxide Finish, High Speed Steel
Item #: 65701732
Brand: Union Butterfield
Model #: 8110606
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Thread Size | 1 - 11-1/2 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 3-3/4 |
| Hook | Regular |
| Projection (Decimal Inch) | 0.6780 |
| Thread Length (Decimal Inch) | 1.7500 |
| Thread Length (Inch) | 1-3/4 |
| Square Length (Inch) | 13/16 |
| Series/List | 6541 |
