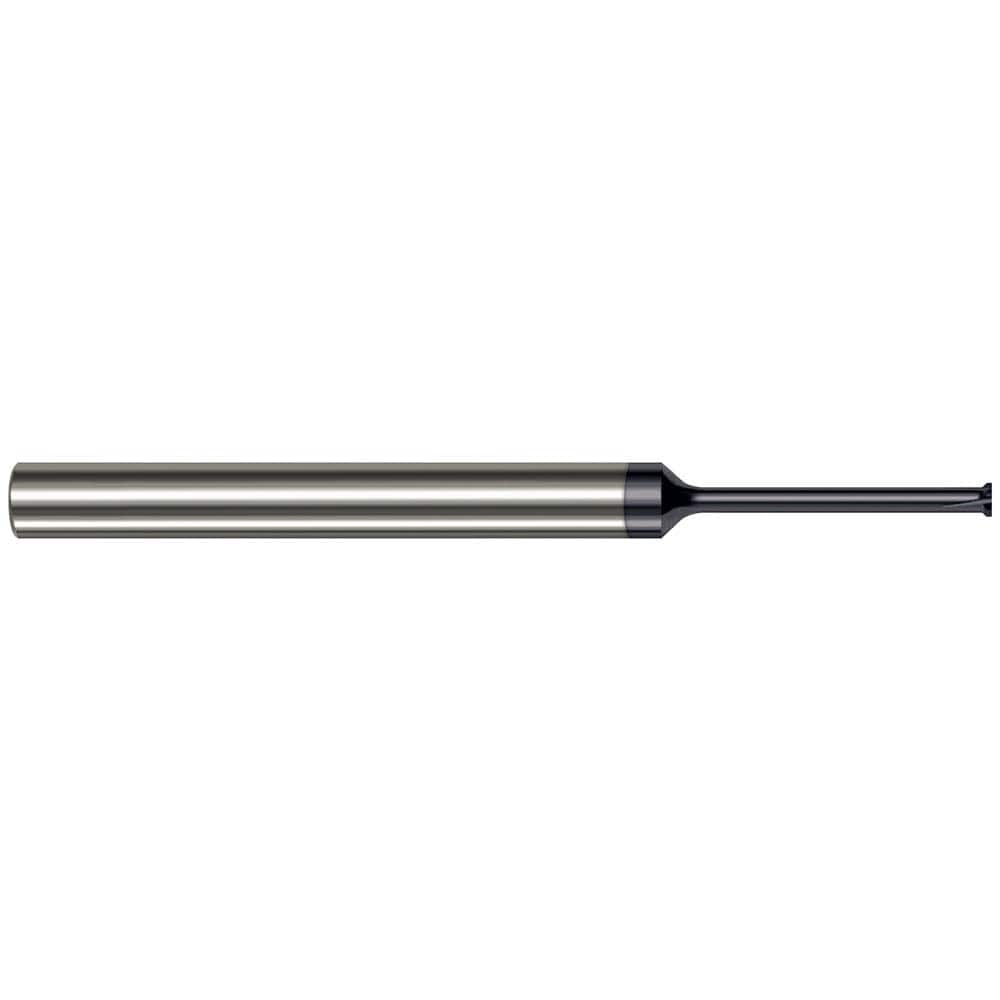

Harvey Tool - 0.135" Diam 90° 0.011" Chamfer 5-Flute Solid Carbide Back Chamfer
Item #: 65736233
Brand: Harvey Tool
Model #: 65820-C3
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.1350 |
| Included Angle | 90 |
| Number of Flutes | 5 |
| Chamfer Width (Decimal Inch) | 0.011 |
| Back Chamfer Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.1070 |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | AlTiN |
| End Type | Burr |
| Shank Diameter (Decimal Inch) | 3/16 |
