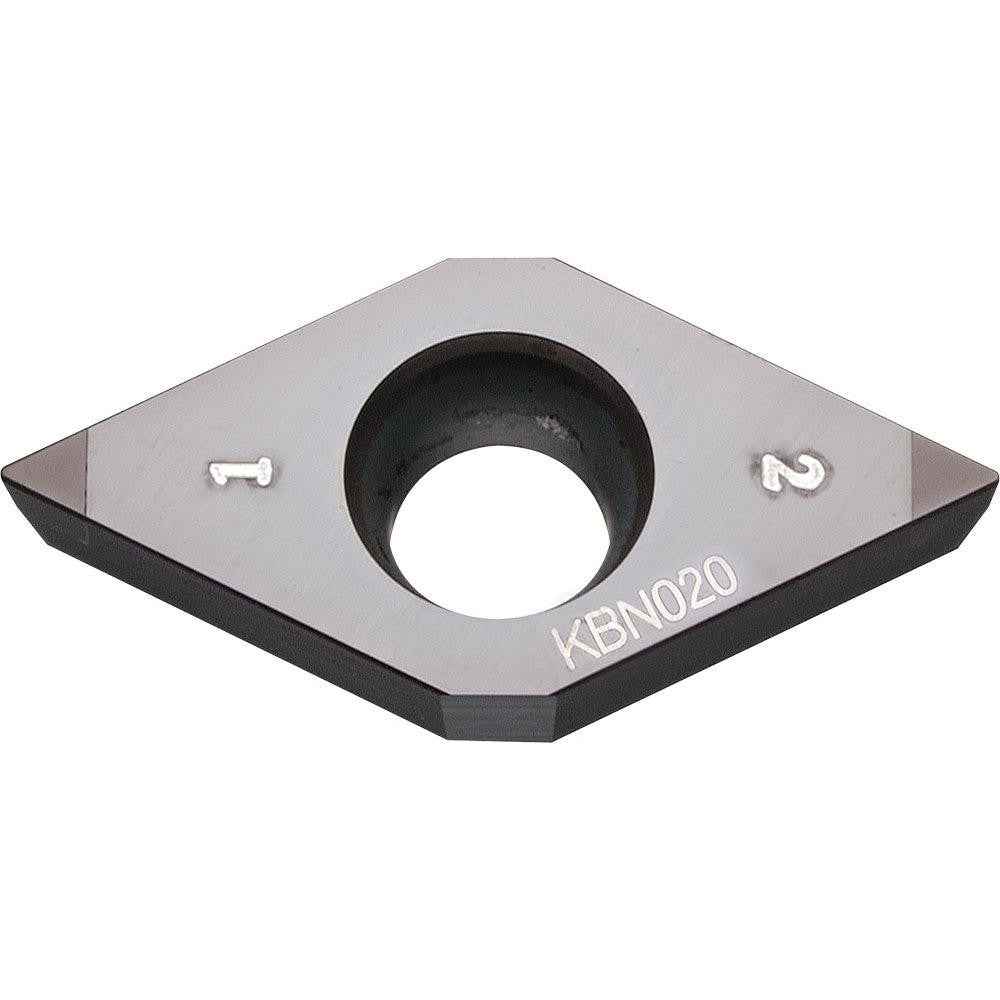

Turning Insert: DCMW2152S00435MET, CBN
Item #: 71816490
Brand: Kyocera
Model #: TFC00087
Product Specifications
| ANSI Insert Code | DCMW2152 |
| ISO Insert Code | DCMW070208 |
| Relief Angle | 7 |
| Insert Style | DCMW |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | CBN |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | DCMW070208S01035MET |
| Manufacturers Catalog Number | DCMW2152S00435METKBN020 |
| Chip Breaker | No Chip Breaker |
| Cutting Edge Style | Tough |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying |
| Tip Length (Decimal Inch) | 0.0748 |
| Tip Length (mm) | 1.90 |
| ANSI Size Code | 2152 |
| ISO Size Code | 070208 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2152 |
| ANSI Insert Code | DCMW2152 |
| ISO Insert Code | DCMW070208 |
| Relief Angle | 7 |
| Insert Style | DCMW |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | CBN |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | DCMW070208S01035MET |
| Manufacturers Catalog Number | DCMW2152S00435METKBN020 |
| Chip Breaker | No Chip Breaker |
| Cutting Edge Style | Tough |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying |
| Tip Length (Decimal Inch) | 0.0748 |
| Tip Length (mm) | 1.90 |
| ANSI Size Code | 2152 |
| ISO Size Code | 070208 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2152 |
| MSC Part # | 71816490 |
| Mfr Part # | TFC00087 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
