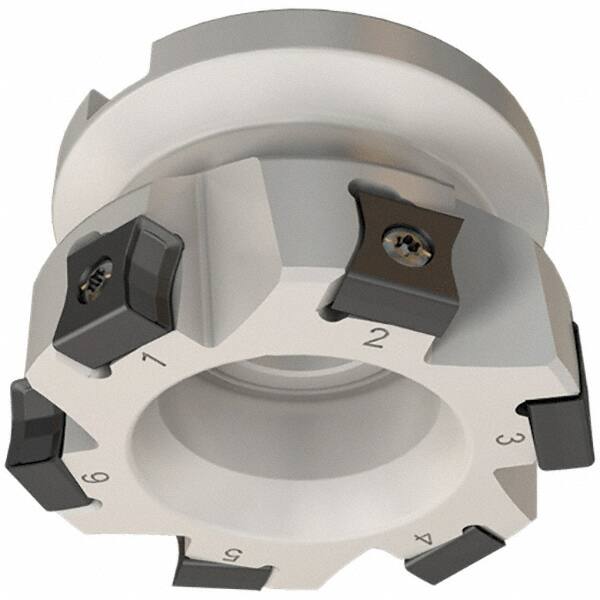

Iscar - 6 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, LN.. 11.. Insert Compatibility, Series TangMill
Item #: 65808123
Brand: Iscar
Model #: 3103739
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | LN.. 11.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Left Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N11 |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 16.00 |
| Hub Diameter (Decimal Inch) | 0.6299 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Keyway Depth (Decimal Inch) | 0.2205 |
| Keyway Depth (mm) | 5.60 |
| Pitch | Fine |
| ISO Number | F90LN D040-06-16-L-N11 |
| Coolant Hole Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | LNAR 1106 PN-N; LNAR 1106 PN-N-P; LNAR 110604PN-R-S; LNAR 110604X45PN-R-S; LNAR 110620X75PN-R-S; LNAR 1106PN-R-S-W; LNAT 1106-86N-R-W; LNAT 1106PN-W; LNAW 1106PN-R-S; LNAW 1106PNTR-S; LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX 1106PN-N MM; LNKX 1106PNTN MM |
