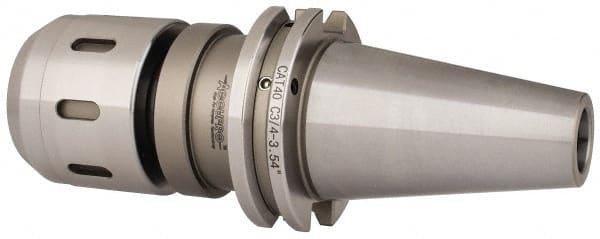

Accupro - CAT40 Taper Shank, 3/4" Hole Diam x 2.05" Nose Diam Milling Chuck - 3.54" Projection, 0.0002" TIR, Through-Spindle & DIN Flange Coolant, Balanced to 10,000 RPM
Item #: 65812919
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | CAT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch) | 2.0500 |
| Projection (Decimal Inch) | 3.5400 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 3.1500 |
| Balanced to (RPM) | 10000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
