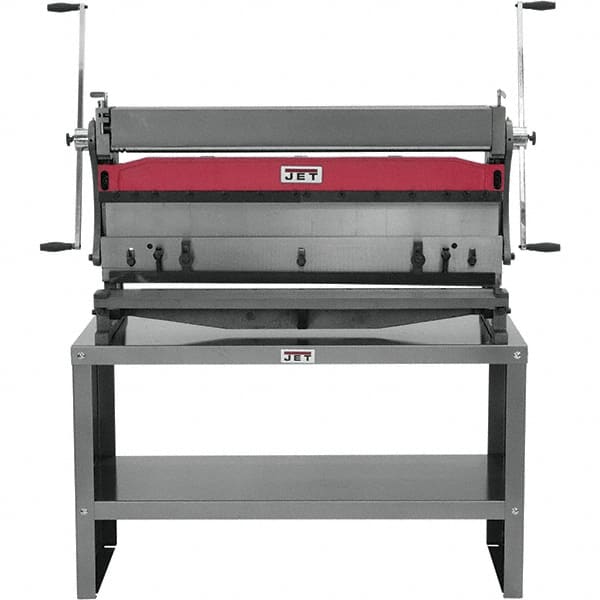

Jet - Combination Roller, Shear & Brake Machines Maximum Mild Steel Shearing Capacity (Gauge): 20 Maximum Mild Steel Bending Capacity (Gauge): 20
Item #: 65813149
Brand: Jet
Model #: 756041
Exact Tooling IR#: 04
Product Specifications
Combination Roller, Shear & Brake Machines; Maximum Mild Steel Shearing Capacity (Gauge): 20 ; Maximum Mild Steel Bending Capacity (Gauge): 20 ; Maximum Mild Steel Rolling Capacity (Gauge): 20 ; Slip Roll Length (Inch): 40 ; Slip Roll Diameter (Inch): 1-5/8 ; Width of Upper Dies (Inch): 1; 2; 4; 6; 7; 8; 12
| Maximum Mild Steel Shearing Capacity (Gauge) | 20 |
| Maximum Mild Steel Bending Capacity (Gauge) | 20 |
| Maximum Mild Steel Rolling Capacity (Gauge) | 20 |
| Slip Roll Length (Inch) | 40 |
| Slip Roll Diameter (Inch) | 1-5/8 |
| Width of Upper Dies (Inch) | 1; 2; 4; 6; 7; 8; 12 |
| Upper Die Height (Inch) | 4-3/4 |
| Minimum Forming Radius (Inch) | 1 |
| Wire Groove Width (Inch) | 1/8; 3/16; 1/4 |
| Base Depth (Inch) | 16-1/2 |
| Base Width (Inch) | 43 |
| Overall Width (Inch) | 56 |
| Overall Depth (Inch) | 23 |
| Overall Height (Inch) | 30 |
| Additional Information | Stand Not Included |
