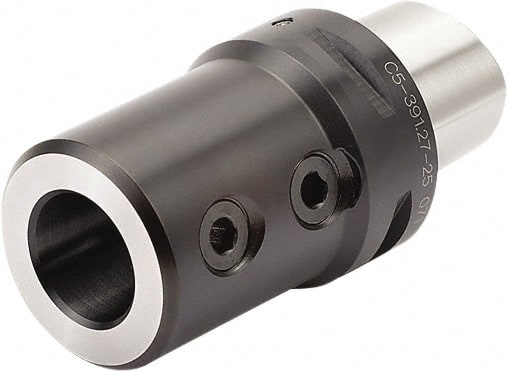

Seco - C4 Modular Connection, 0.7874" Inside Hole Diam, 2.3622" Projection, Drill Adapter - 1.5748" Body Diam, Modular Connection Shank, Through Coolant
Item #: 65821225
Brand: Seco
Model #: 15876
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C4 |
| Inside Hole Diameter (mm) | 20.00 |
| Inside Hole Diameter (Decimal Inch) | 0.7874 |
| Projection (mm) | 60.00 |
| Body Diameter (mm) | 40.00 |
| Body Diameter (Decimal Inch) | 1.5748 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
