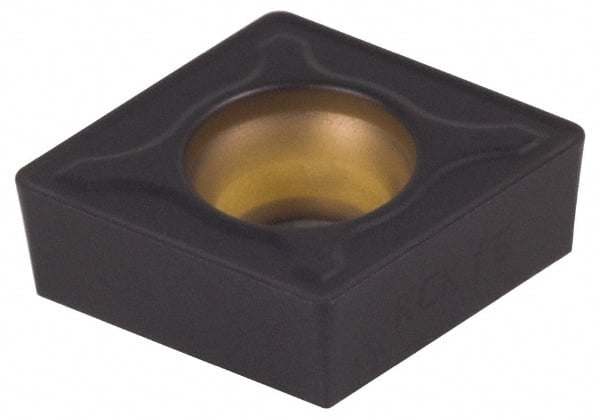

Kennametal - CCMT32.53 MF Grade KCP10 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 3/64" Corner Radius
Item #: 65854945
Brand: Kennametal
Model #: 3749444
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.53 |
| Material | Carbide |
| Length (mm) | 9.67 |
| Length (Decimal Inch) | 0.3807 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C7 |
| Chip Breaker | MF |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
