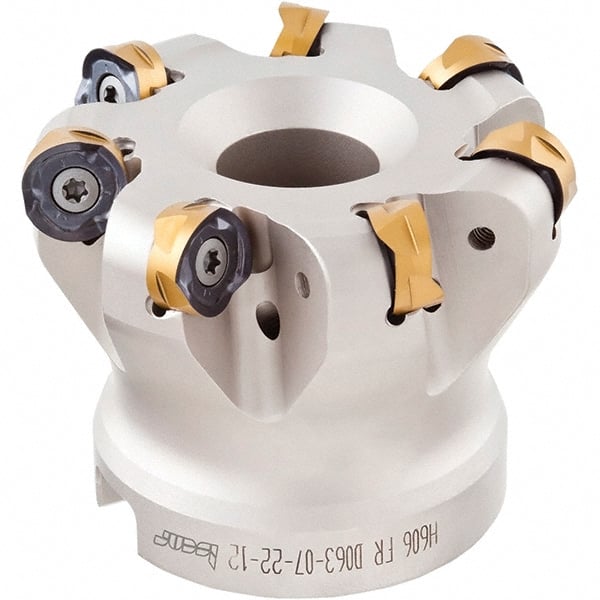

Iscar - 3" Cut Diam, 0.236" Max Depth, 1" Arbor Hole, 8 Inserts, H606 RXCU 1206-AX.. Insert Style, Indexable Copy Face Mill - H606 FR-12 Cutter Style, 2" High, Through Coolant, Series Helido
Item #: 65917023
Brand: Iscar
Model #: 3106382
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Helido |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | H606 RXCU 1206-AX.. |
| Cutter Style | H606 FR-12 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.1650 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | H606 RXCU 1206-AXMP; H606 RXCU 1206-AXT |
