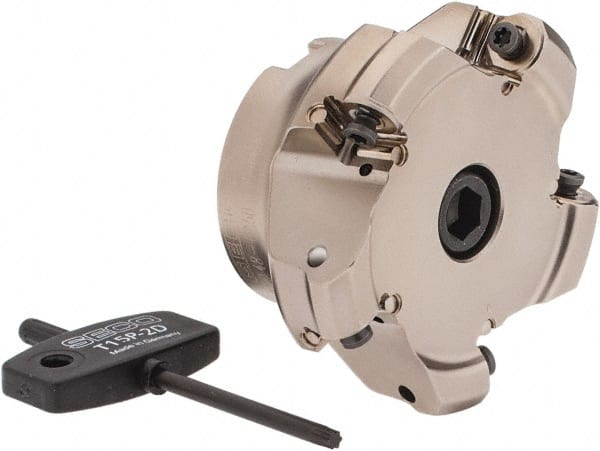

Seco - 2.48" Cut Diam, 3/4" Arbor Hole, 0.118" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 5 Inserts, ON.U 05 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Double Octo 05
Item #: 65934226
Brand: Seco
Model #: 10085
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | ON.U 05 |
| Series | Double Octo 05 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R220.48 |
| Number of Flutes | 5 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.3200 |
| Maximum Body Diameter (Decimal Inch) | 2.8100 |
| Maximum RPM | 12800 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Cutting Edge Length (Decimal Inch) | 0.1180 |
| Counterbore Diameter (Decimal Inch) | 0.3200 |
| Complete Insert Compatibility | ONMU 05; ONEU 05 |
| Toolholder Material | Steel |
