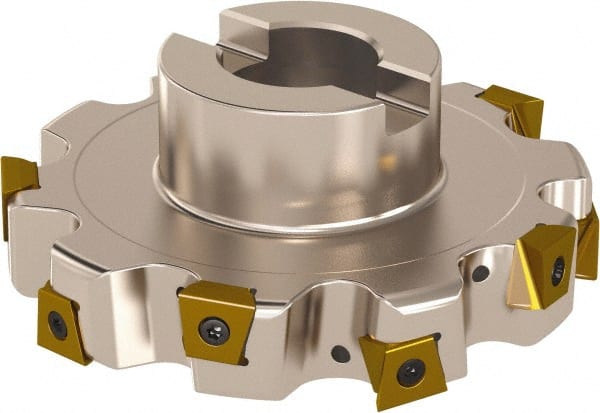

Seco - Arbor Hole Connection, 1" Cutting Width, 3.43" Depth of Cut, 10" Cutter Diam, 2" Hole Diam, 9 Tooth Indexable Slotting Cutter - 335.25 Toolholder, L/XNHQ 1407 Insert
Item #: 65940835
Brand: Seco
Model #: 14361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 3.4300 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 9 |
| Toolholder Style | 335.25 |
| Series | 335.25 |
| Insert Style | L/XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Maximum RPM | 3500 |
| Minimum Cutting Width (Decimal Inch) | 1.0000 |
| Maximum Cutting Width (Decimal Inch) | 1.0000 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Radius | No |
| Complete Insert Compatibility1 | LNHQ 1407; XNHQ 1407 |
