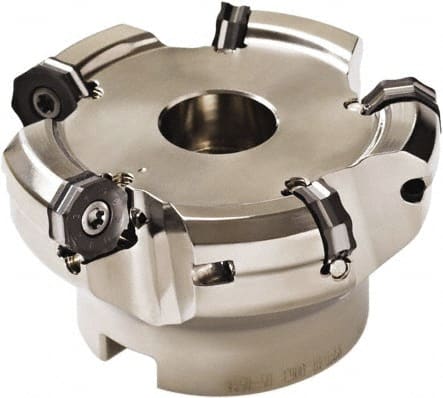

Seco - 49mm Cut Diam, 16mm Arbor Hole, 3mm Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 5 Inserts, ON.. 0504 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Double OctoMill
Item #: 65941023
Brand: Seco
Model #: 10068
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 49.00 |
| Cutting Diameter (Decimal Inch) | 1.9291 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | ON.. 0504 |
| Series | Double OctoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 1.3780 |
| Hub Diameter (mm) | 35.00 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Maximum Body Diameter (Decimal Inch) | 1.5748 |
| Maximum RPM | 16100 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Complete Insert Compatibility | ONEU 050410ZZTN4-M10; ONMU 050410ANTN-M10; ONMU 050410ANTN-M11; ONMU 050410ANTN-ME10; ONMU 050410ANTN-ME11 |
