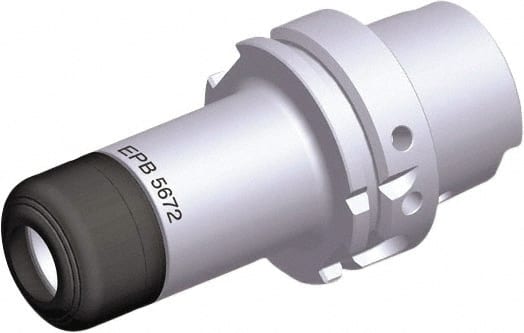

Seco - 2mm to 16mm Capacity, 6.299" Projection, HSK100A Hollow Taper, ER25 Collet Chuck - 8.268" OAL
Item #: 65942120
Brand: Seco
Model #: 09259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Hollow Taper |
| Taper Size | HSK100A |
| Projection (Decimal Inch) | 6.2990 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 8.2680 |
| Nose Diameter (Decimal Inch) | 1.5750 |
| PSC Code | 5136 |
| Balanced to (RPM) | 42000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.5748 |
| Collet Nut Diameter (mm) | 40.00 |
