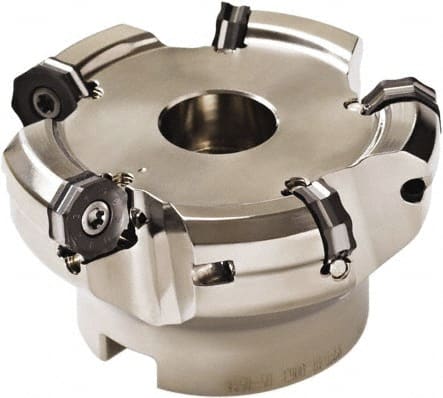

Seco - 95mm Cut Diam, 27mm Arbor Hole, 3mm Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 6 Inserts, ON.. 0504 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Double OctoMill
Item #: 65942500
Brand: Seco
Model #: 09589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 95.00 |
| Cutting Diameter (Decimal Inch) | 3.7402 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | ON.. 0504 |
| Series | Double OctoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Hub Diameter (mm) | 62.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Maximum RPM | 11400 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | ONEU 050410ZZTN4-M10; ONMU 050410ANTN-M10; ONMU 050410ANTN-M11; ONMU 050410ANTN-ME10; ONMU 050410ANTN-ME11 |
