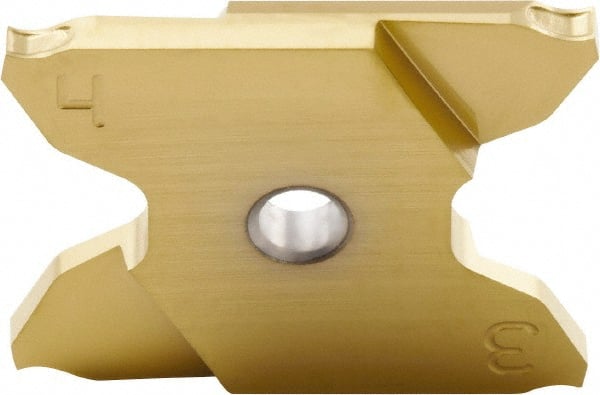

Seco - 2503010X4GK MC Grade CP500, 0.059" Cutting Width Carbide Grooving Insert - 0.256" Max Depth of Cut, Neutral, 0.004" Corner Radius, TiAlN/TiN Finish
Item #: 65948994
Brand: Seco
Model #: 16233
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | X4GK |
| Insert Size | 2503010 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0590 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.8000 |
| Lead Angle | 0 |
| Relief Angle | 6 |
| Chipbreaker | MC |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Minimum Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.0020 |
| Series | X4 |
| Rake | Neutral |
| Overall Width (Decimal Inch) | 0.1180 |
